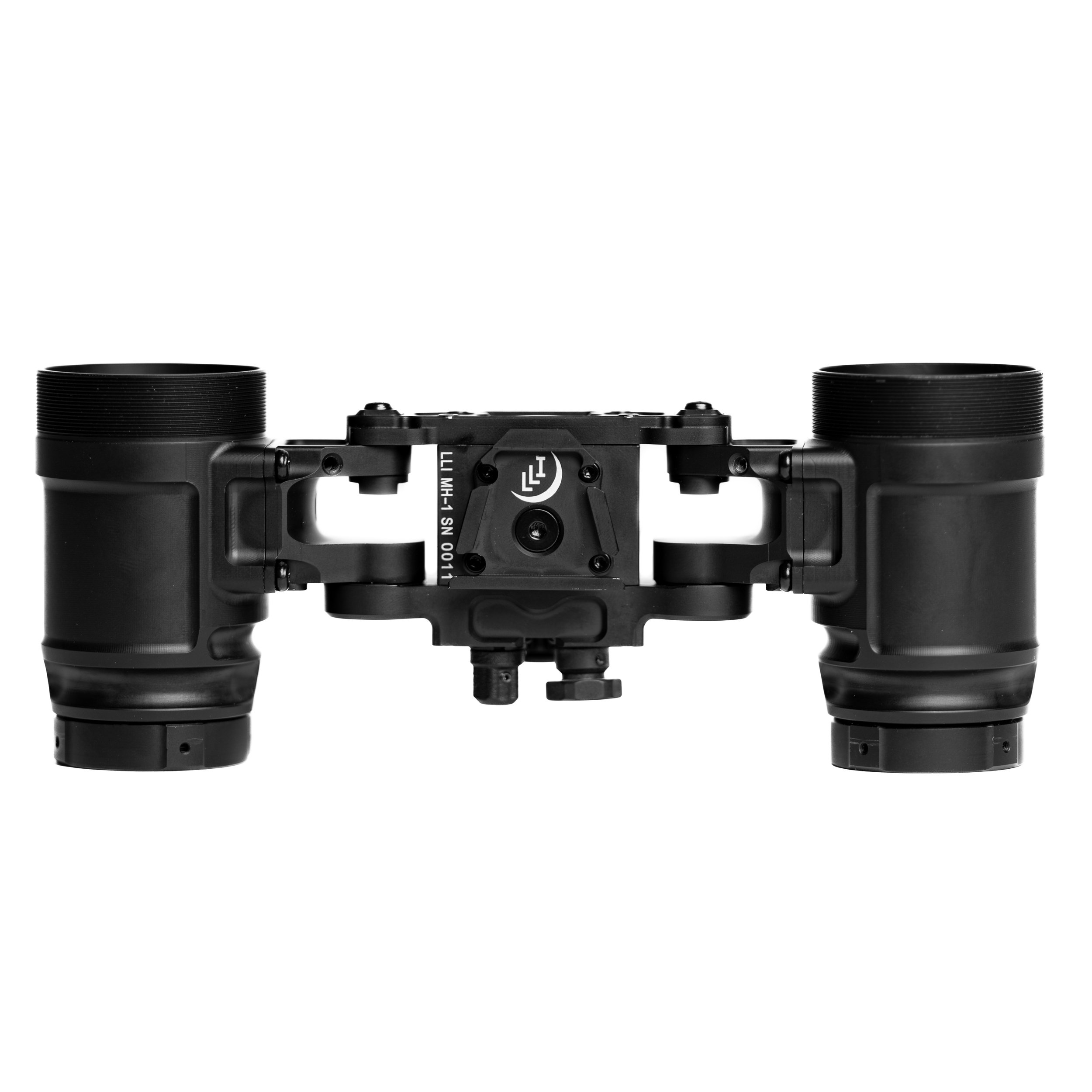

MH-1 Modular Binocular (Bare Housing Kit)
Constructed from exceptionally durable materials, the MH-1 is remarkably lightweight, tipping the scales at a mere 15.3 ounces (433g) in its lightest configuration. One standout aspect appreciated by users is its seamless power source interchangeability and the capability to transform into two distinct monoculars through the innovative Modular Bridge System (MBS). Noteworthy is the manual gain feature that safeguards the tube warranty without the need for soldering, enhancing its user-friendliness.
Constructed from exceptionally durable materials, the MH-1 is remarkably lightweight, tipping the scales at a mere 15.3 ounces (433g) in its lightest configuration. One standout aspect appreciated by users is its seamless power source interchangeability and the capability to transform into two distinct monoculars through the innovative Modular Bridge System (MBS). Noteworthy is the manual gain feature that safeguards the tube warranty without the need for soldering, enhancing its user-friendliness.
Constructed from exceptionally durable materials, the MH-1 is remarkably lightweight, tipping the scales at a mere 15.3 ounces (433g) in its lightest configuration. One standout aspect appreciated by users is its seamless power source interchangeability and the capability to transform into two distinct monoculars through the innovative Modular Bridge System (MBS). Noteworthy is the manual gain feature that safeguards the tube warranty without the need for soldering, enhancing its user-friendliness.
SPECIFICATIONS:
POWER SOURCE: MODULAR
FOCUS RANGE: 9.8” TO INFINITY
OPERATION TIME: APPROXIMATELY 25-90 HOURS
MAGNIFICATION: (1X) ONE POWER
FIELD OF VIEW: 40 DEGREES
INTERPUPILLARY ADJUSTMENT: 51 TO 78MM
DIOPTER ADJUSTMENT: -6 TO +2
EYE RELIEF: 25MM
WEIGHT: 434g
WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS
INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
FEATURE LIST:
Rotational pod shutoff
Manual gain control (4 pin plug-in)
Dual power IR illumination
IPD stops
Modular pods (Ability to split into monos)
Onboard power (Modular)
External power (Modular)
Modular mounting platforms (Dovetail/Ball detent)
Adjustable pod tension
