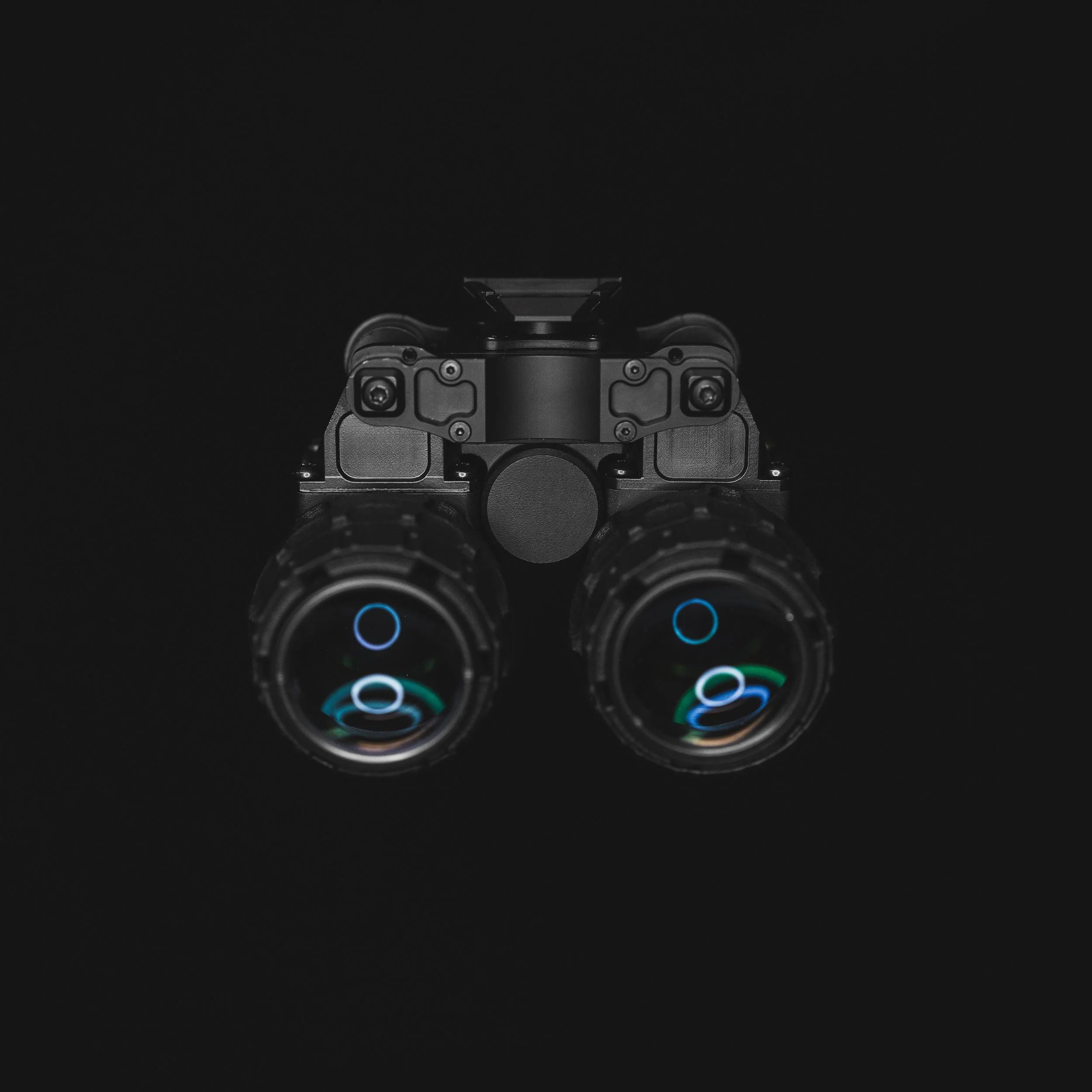

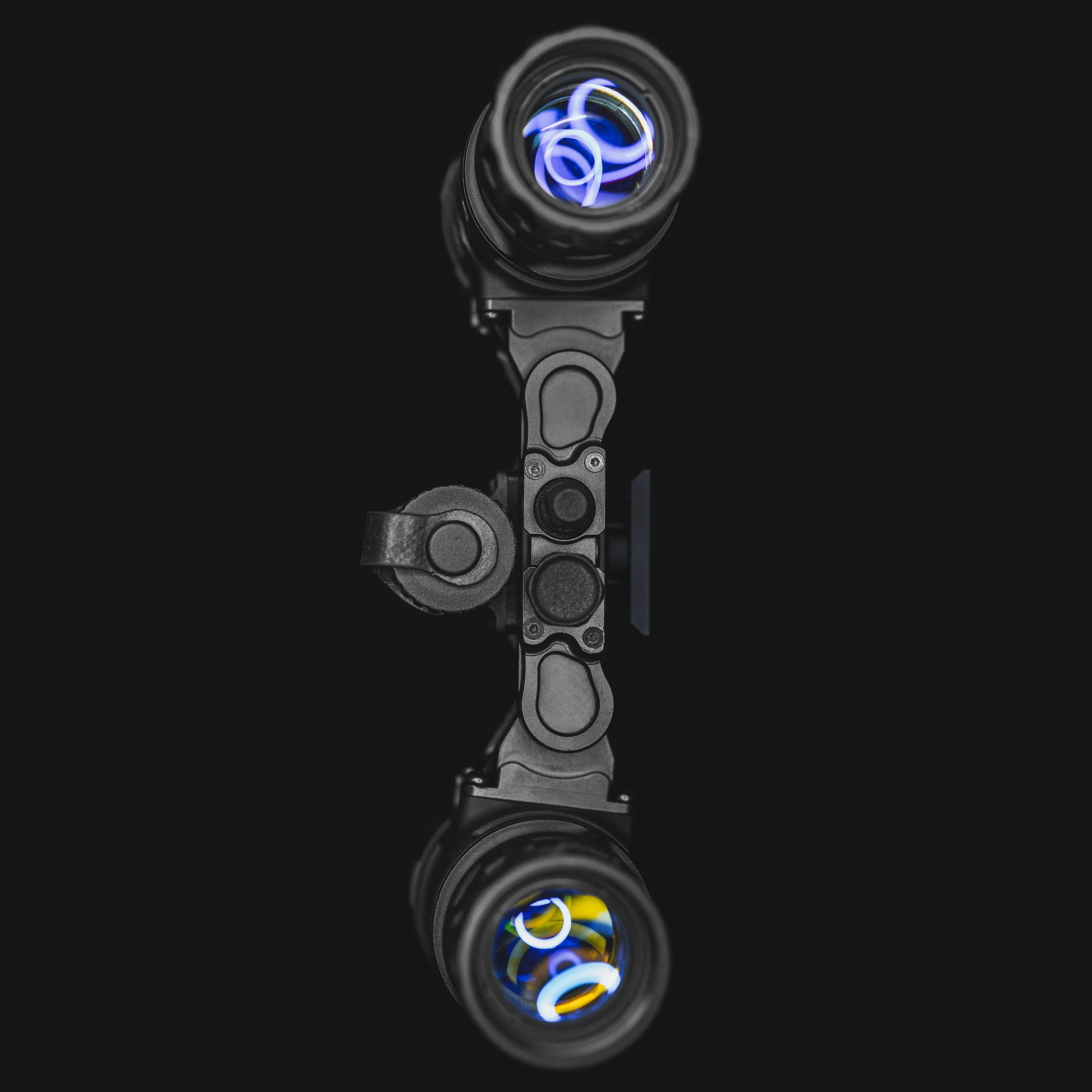

MH-1

Crafted from advanced aerospace-grade magnesium and titanium alloys, the MH-1 offers a lightweight design, tipping the scales at a mere 15.3 ounces (433g) in its lightest configuration. Users appreciate the versatility of seamlessly switching between power supplies and the option to transform it into two separate monoculars through the innovative Modular Bridge System (MBS). Among its standout features is the manual gain capability, allowing for tube warranty preservation without the need for soldering, enhancing the overall user experience.

Specs:

  • POWER SOURCE: MODULAR

  • FOCUS RANGE: 9.8” TO INFINITY

  • OPERATION TIME: APPROXIMATELY 25-90 HOURS

  • MAGNIFICATION: (1X) ONE POWER

  • FIELD OF VIEW: 40 DEGREES

  • INTERPUPILLARY ADJUSTMENT: 51 TO 78MM

  • DIOPTER ADJUSTMENT: -6 TO +2

  • EYE RELIEF: 25MM

  • WEIGHT: 434g

  • WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS

  • INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE

Feature Set:

Rotational pod shutoff

Manual gain control (4 pin plug-in)

Dual power IR illumination

IPD stops

Modular pods (Ability to split into monos)

Onboard power (Modular)

External power (Modular)

Modular mounting platforms (Dovetail/Ball detent)

Adjustable pod tension

Preorder now
